ECHO during 2023-2024 Field Season
Concept Sketch

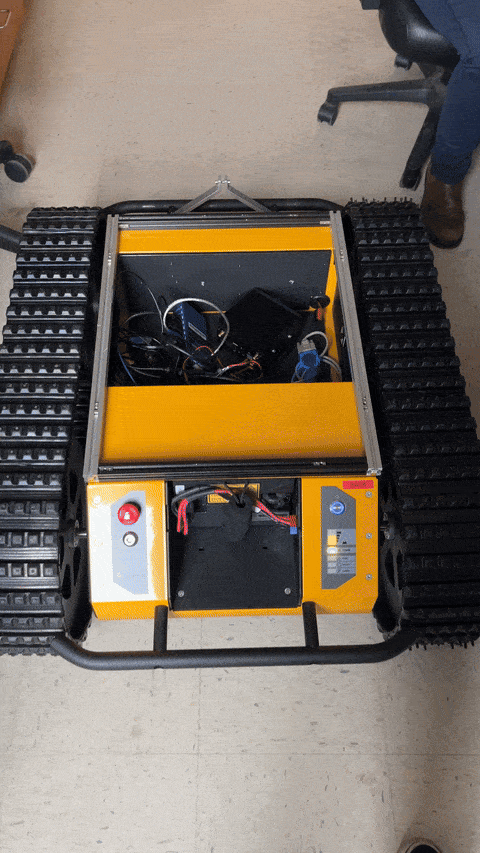

Test fit of treads and idler wheel assembly.

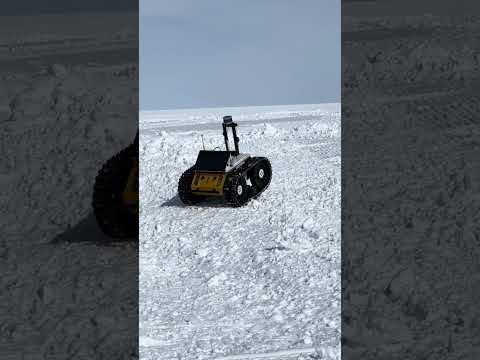

Test drive in Woods Hole
First drive test
Images used for supplier communication
Sample Engineering Drawings
 Solidworks model of the idler plate assembly, highlighting the reversible feature of the design. This allows the tread tension to be configured manually, with either a crowned or flat contact plane.
Full CAD Model
